FRMICA<sup>TM</sup> FP THIN
FRMICA<sup>TM</sup> FP THINFRMICA<sup>TM</sup> FP THIN

FRMICA TM FP120G16 Mica tape

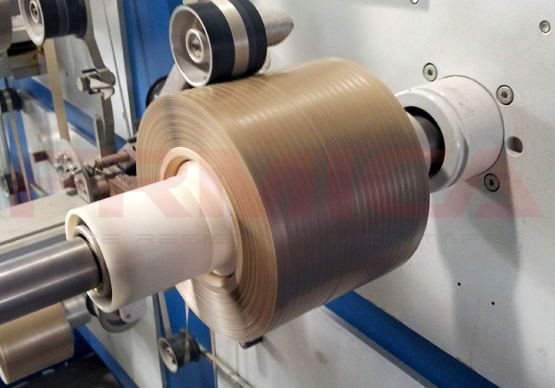

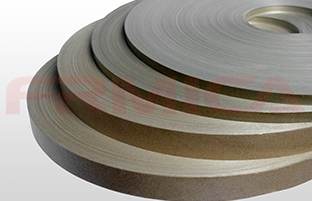

FRMICA TM FP120G16 Hi-silicon enhanced mica tape consists of superior phlogopite mica paper bonded to reinforcedglass fabric, impregnated with high temperature resistant silicone resin. It is special coated with inorganic materials.

It is widely used for all wires & cables as a barrier for circuit integrity to save lives in fire. Its level of performance allows to pass the full range up to the most fire  resistance standard such as GB/T19216.31, BS6387, EN 50200, IEC60331 etc.

  • The special coating gives additional smooth surface of the conductor after taping
  • Perfect solution for glass and mica problems during high speed taping
  • Significantly improves the fire resistance performance
  • Low fume, halogen free, non-toxic


Type

FRMICA TM FP120G16
Test Standard
Normal Thickness
mm
0.145 ± 0.015
IEC60371-2
Total Substance
g/m2
210 ± 15
IEC60371-2
Mica Content
g/m2
120 ± 5
IEC60371-2
Tensile strength
N/mm
>90
IEC60371-2
Dielectric strength
Kv/layer
> 3.0
IEC60371-2
Stiffness
N/m
20-30
IEC60371-2

Width: from 5-1000mm
Length: 300m, 500m, 1000m(Pad),3000-10000m(Spool)
Standard cores: 76mm
(Various specifications available according to customers‘ requirements)
